Epoxy Painted ST-37 Tank Surface Piping Softening Filter Systems




SOFTENING FILTER SYSTEMS


CODE MODEL                  TANK SIZE (Rxh) mm CONNECTION DIAMETER
(SERVICE-DRAINAGE-SALT SUCTION)
FLOW RATE
(m³/h)
RESIN (lt) QUARTZ (kg)
AS1200 AS12 1250 x 3210 80 - 50 - 40 50 1.800 200
AS1600 AS16 1600 x 3350 100 - 80 - 50 85 2.800 300
AS2000 AS20 2000 x 3550 125 - 80 - 50 135 4.400 500
AS2400 AS24 2400 x 3750 150 - 100 - 80 180 6.300 700
  • It is used the treatment of substances that make up lime and hardness in the water.
  • Galvanized piping, inner surface is covered with CTP.
  • Thanks to fully automatic valve it performs its back washing without the need of human intervention.
  • Epoxy painted with carbon steel tank.
  • Flow controlled regeneration.

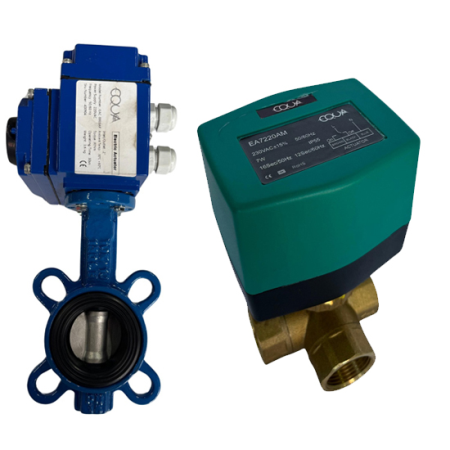

  • Butterfly valves with electric actuators.
  • With sample taps and manometers.
  • Softening resin is EQUA brand.
  • 1 lt resin is regenerated with 140 gr salt.
  • Resin capacity 6000 Fr/lt accepted.
  • Extra washed quartz sand and special sequence in various sizes.


Category: Filtration Systems
Tags:
  • Working pressure 2 - 7 bar
    Working temperature 4°C - 50°C
    Power supply 220V/12V - 50Hz
